Package No 01
USAGE: 200W LOAD STATUS & 3:30 hrs BACK-UP TIME
Rs. 289,053.05 Price With Solar
|

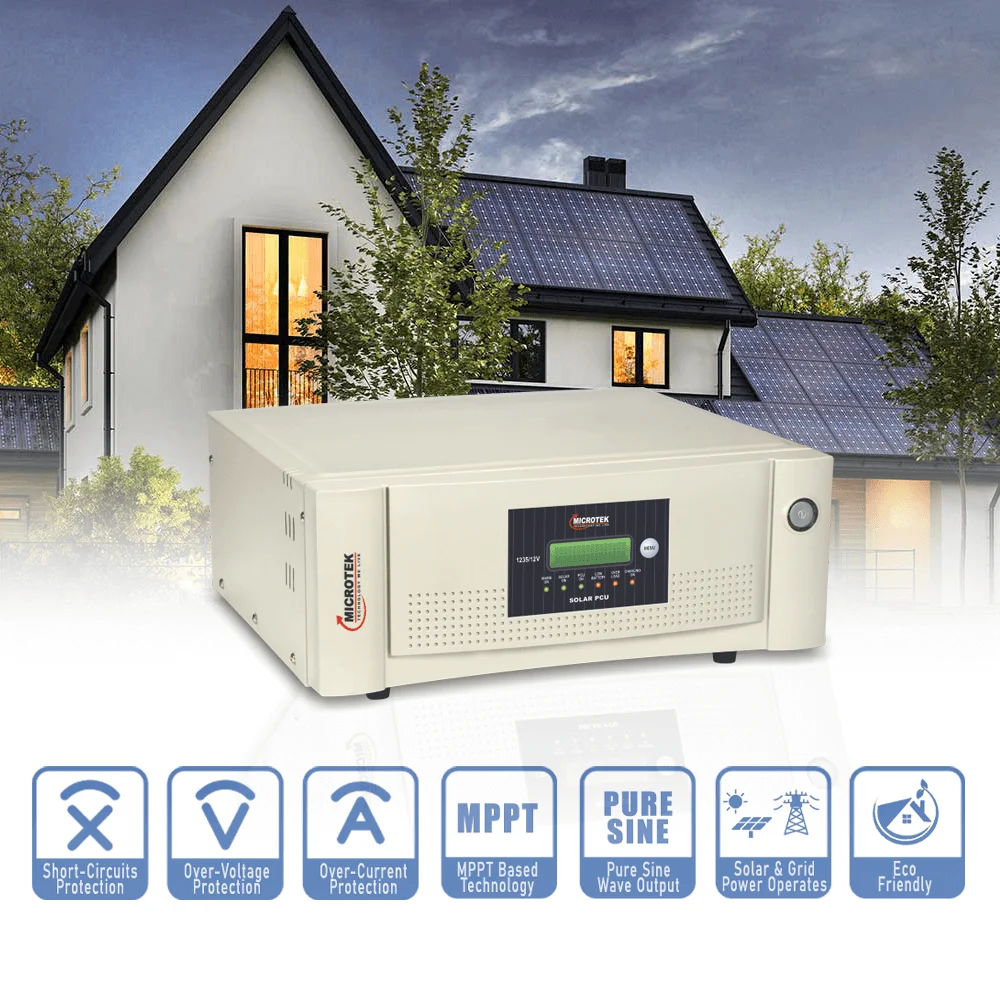

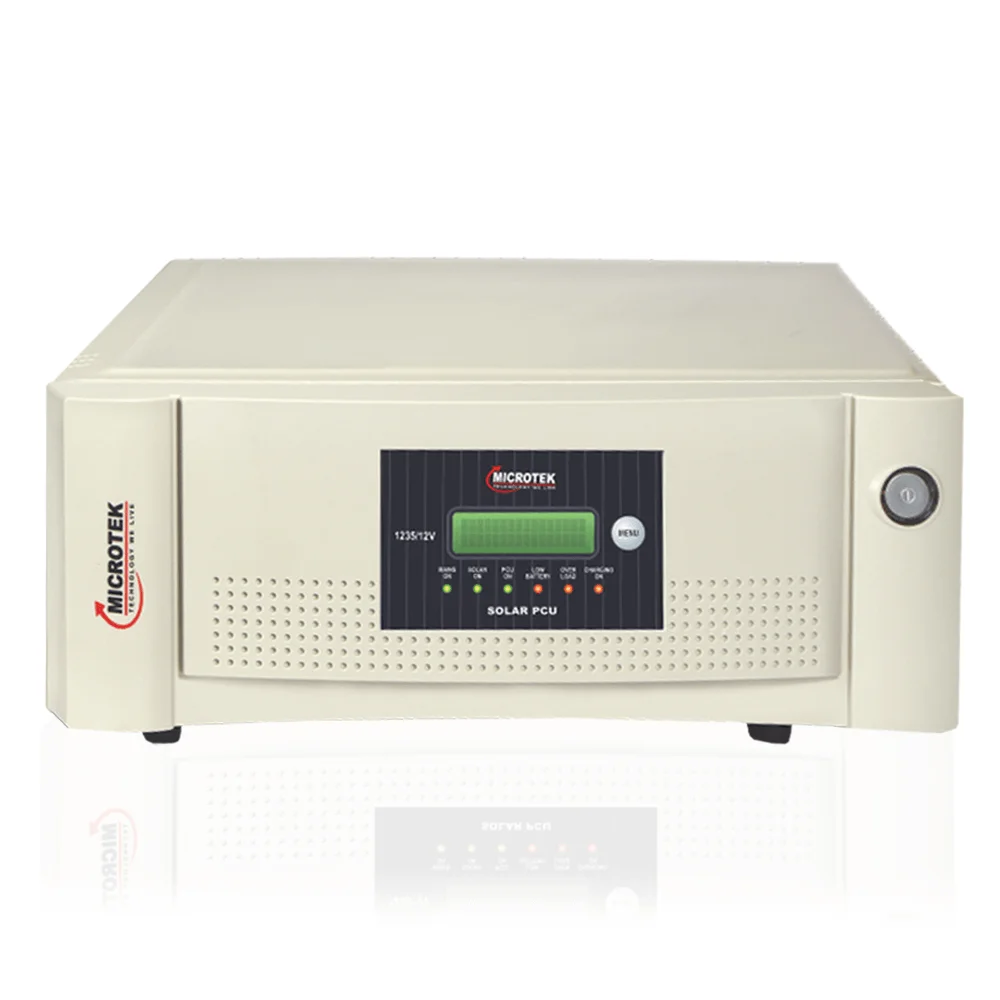

INVERTER |
PCU1235/12V 935VA (2 YEARS WARRANTY) |
|
SOLAR PANELS |
150W-3UNITS (10 YEARS PRODUCT WARRANTY)(25YEARS PERFORMANCE WARRANTY FOR 80% POWER OUT-PUT) |
|
BATTERY |
12V/100AH (3 YEARS WARRANTY) |

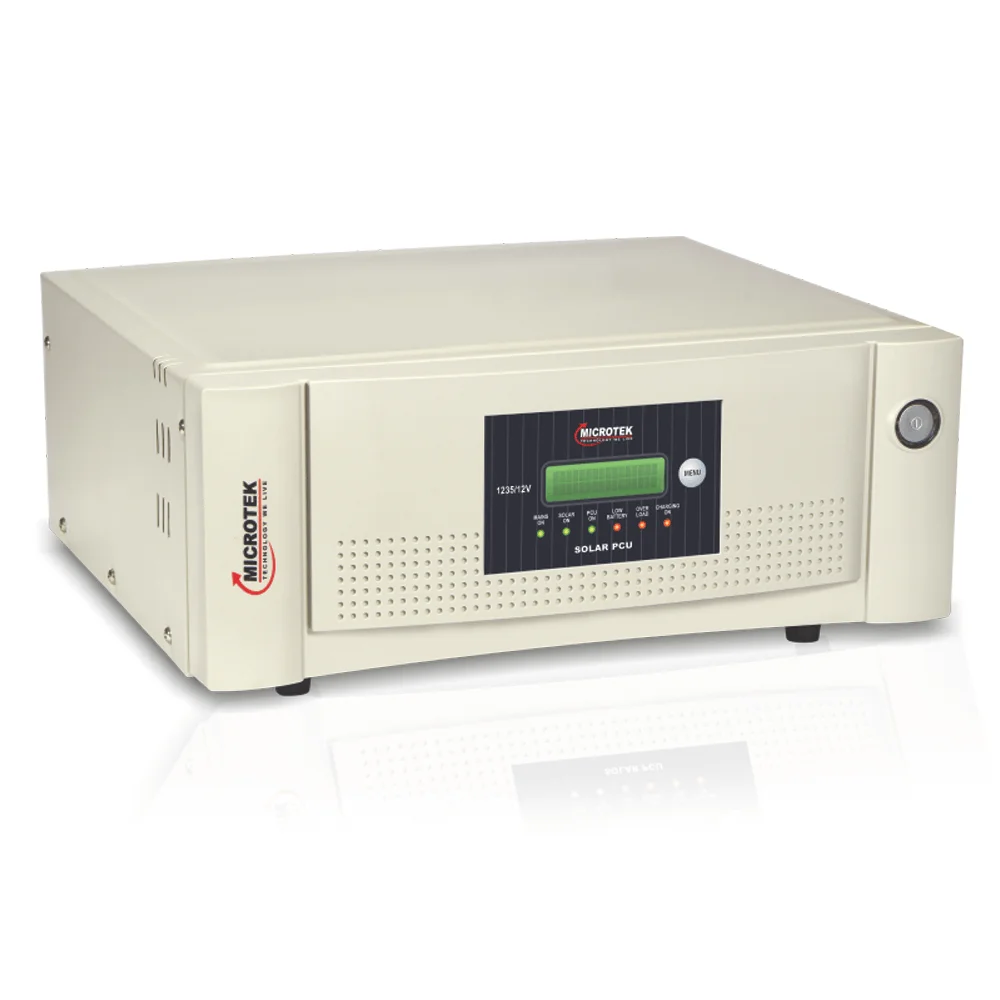

Key Features
- Micro-Controller DSPIC Based Intelligent Control Design.
- Dual Charging,Mains Mode and Solar Mode.(Solar Panel upto 600W-12V model).
- Pure Sine Wave Regulated Output.
- Smart PWM Controlled multistage ATM (Automatic Trickle Mode) Charging.
- LCD and Graphical Display Indications (Status & Fault).
- Smart and Faster Overload Sense and Short Circuit Protection.
- Auto Reset Feature.
- Mains Input Voltage Range Selection.
- PV Mode ON/OFF Selection Switch.
- Charging Voltage Selection Switch.
- Grid Charging Enable /Disable Selection.
- Pure Sine wave Regulated Output.
Technical Specifications
|
Model |
SOLAR PCU 1235/ 12V |
|
Capacity (Rated Power) |
935VA / 12 V |
|
Capacity (Maximum PV Power support) |
600 WP |
|
Input |
|
|
Input Voltage (Standard Range) |
100 V ~ 300 V |
|
Input Voltage (Narrow Range) |
180V ~ 260 V |
|
Nominal Input Battery Voltage |
12 V |
|
Output |
|
|
Output Frequency |
50 Hz ± 0.5 Hz |
|
Output Waveform |
Pure Sine Wave |
|
Technology |
|
|
Solar Charger Type |
PWM |
|
Max. Solar Panel Current |
35 Amps |
|
Mains Re-Connect Voltage |
11.6 V + 0.3 V DC |
|
Mains Dis-Connect Voltage |
14.4 V + 0.3 V DC |
|
Solar UPS Overload |
110% |
|
Solar UPS Short Circuit |
300% |
|
Solar UPS Transfer Time |
< 12 msec |
|
Grid Chg. Enable Mode |
Luxury Mode |
|
Grid Chg. Disable Mode |
Economy Mode |

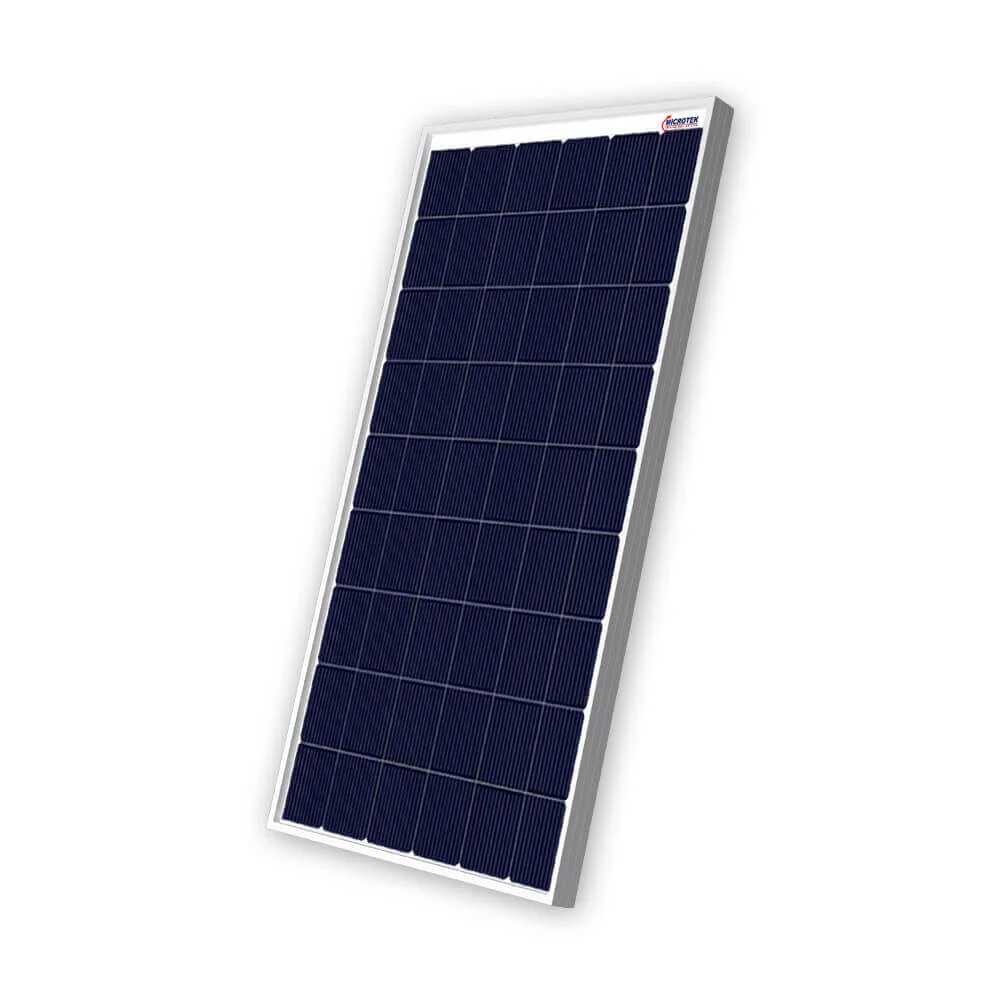

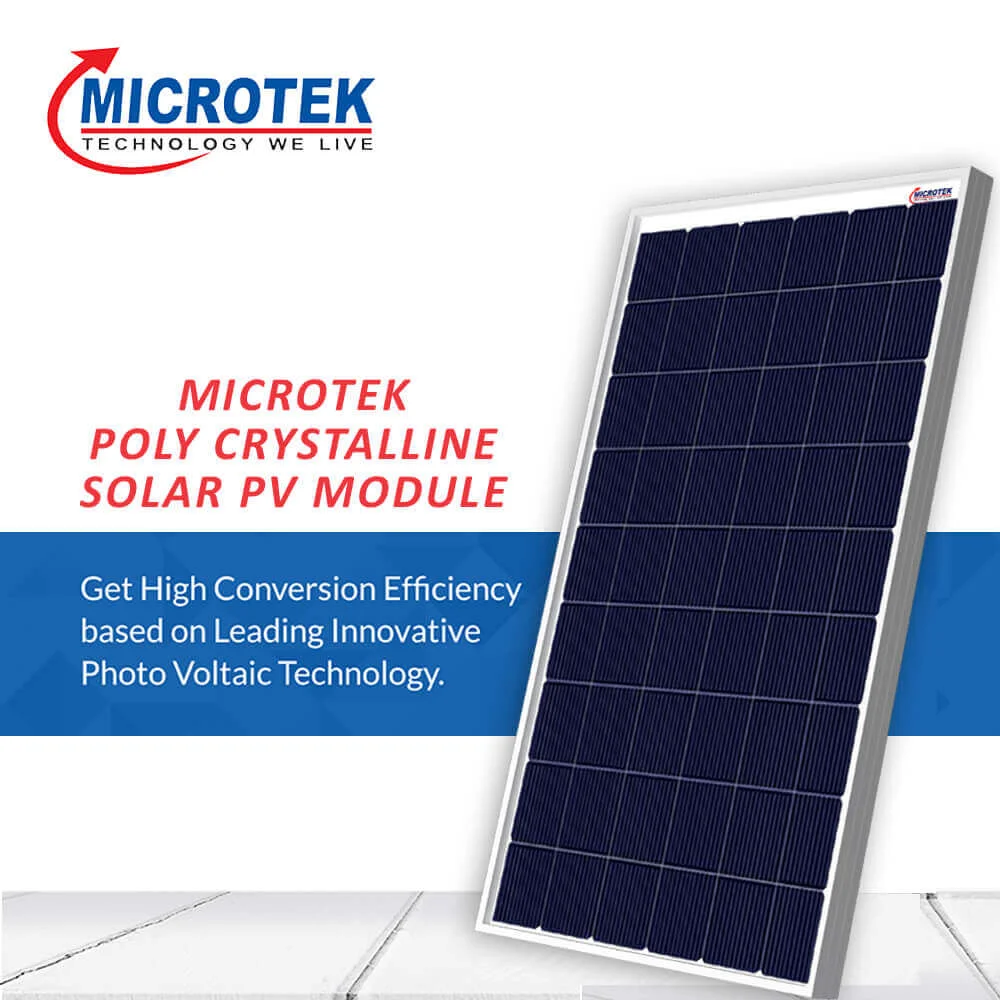

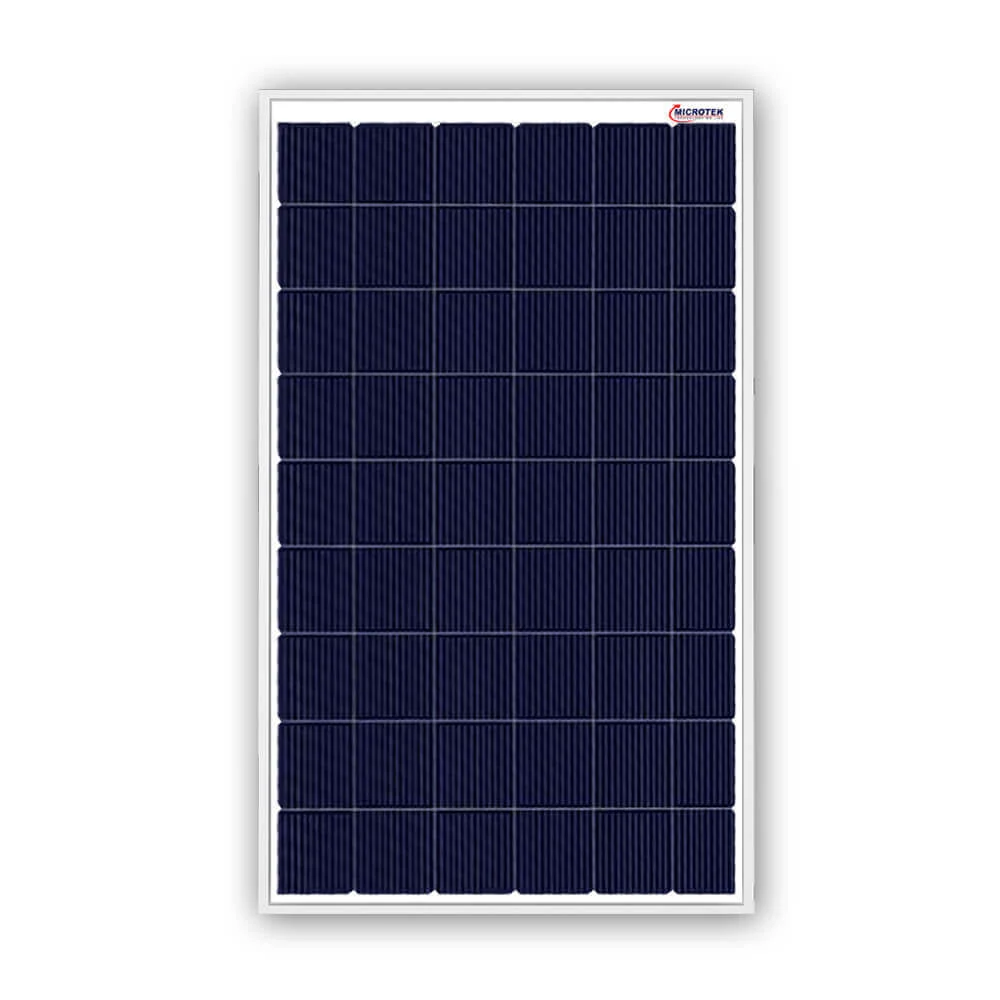

Key Features
- Positive Power Tolerance Modules.
- Highly Classified A-Grade Solar Cells for Lesser Degradation and High Energy.
- Micro Crack Free Panels-100% EL Tested Before and After Lamination.
- High Conversion Efficiency based on Leading Innovative Photo Voltaic Technologies.
- PID Free Modules with Long Term Reliability.
- Anti-Reflective Coating Glass Available.
- Advance IP67/IP68 Junction Box for long-term weather endurance.
- RFID Tag Available.
- Sustain Heavy Wind and Snow Loads (2400Pa and 5400Pa).
- Excellent Performance in Low Light.
- Salt Mist, Ammonia, Blowing Sand and Hail Resistant.
- Ideal for Off-Grid as well as On-Grid Applications.
- IP67 rated MC4 Compatible Connectors.
- EVA Encapsulation and Anti Reflection Coating for better Module Protection.
Technical Specifications
General Info |
|||||||||||||
|
Length x Width x Thickness (LxWxT) - mm |
1495x665x35 |
||||||||||||
|
Mounting Holes Pitch (Y) – mm |
980 |
||||||||||||
|
Mounting Holes Pitch (X) – mm |
630 |
||||||||||||
|
Solar Cells per Module (Units) / Arrangement |
36 / (9 x 4) |
||||||||||||
|
Solar Cell Type |
Multi Crystalline Silicon |
||||||||||||
|
Front Cover (Material / Thickness) |
Tempered & Low Iron Glass / 3.2mm |
||||||||||||
|
Encapsulate |
Ethylene Vinyl Acetate |
||||||||||||
|
Frame Material |
Anodized Aluminum Alloy |
||||||||||||
|
Junction Box |
IP67/IP68 Enclosure with Bypass Diodes |
||||||||||||
