USAGE: 1500W LOAD STATUS & 5:12 hrs BACK-UP TIME

Rs. 1,174,645.60 _{Price Without
Solar}
Rs. 2,100,325.60 _{Price With Solar}

INVERTER	HI-END MPPT PCU 5KVA/48V (2 YEARS WARRANTY)
SOLAR PANELS	320W-12 UNITS (10 YEARS PRODUCT WARRANTY)(25YEARS PERFORMANCE WARRANTY FOR 80% POWER OUT-PUT)
BATTERY	12V/250AH (3 YEARS WARRANTY)

Request a Quote

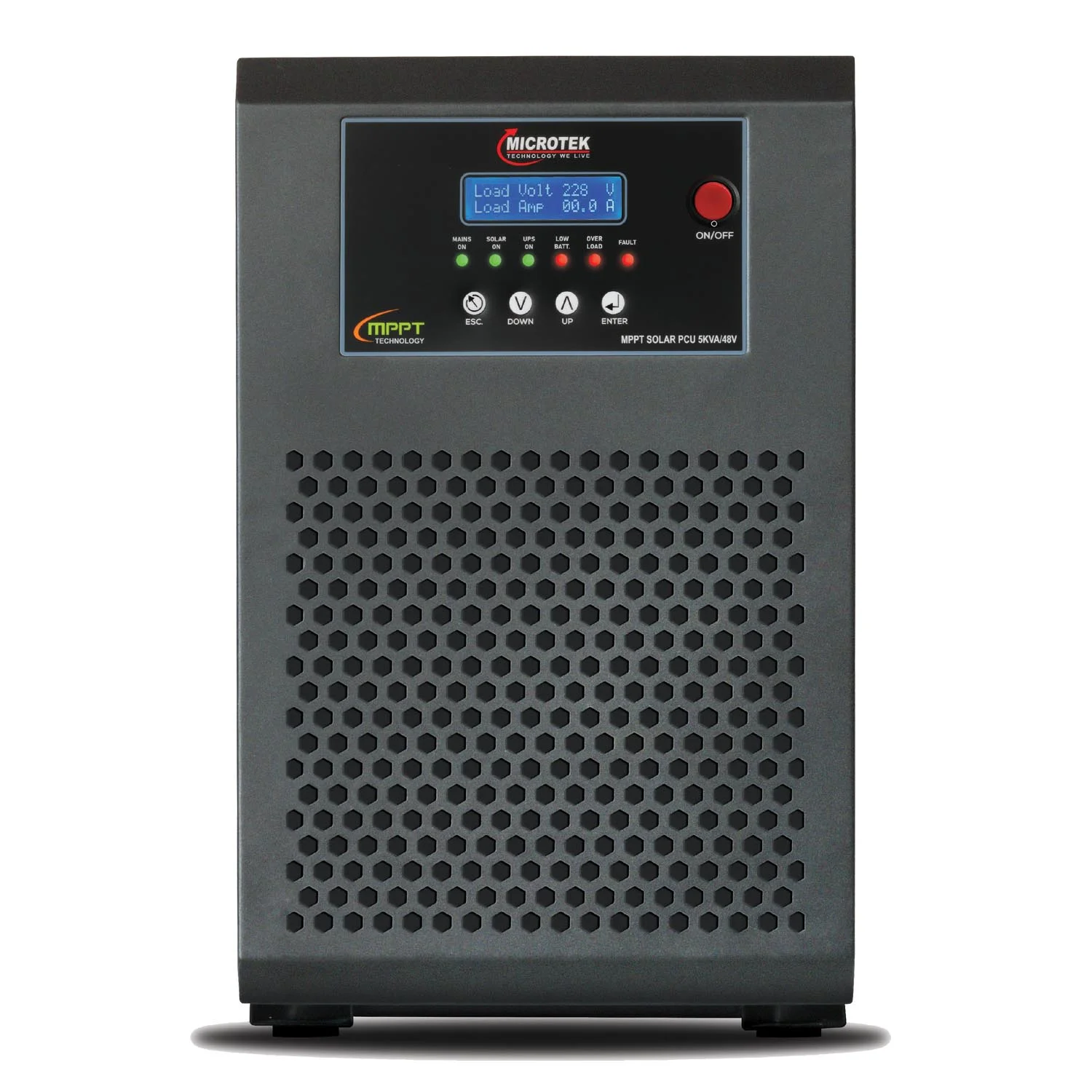

High Efficiency Microtek True MPPT Solar PCU.
Advanced DSP Based Technology.
adaptive MPPT Logic for excellent power generation.
Pure Sinewave Output. User Friendly LCD Display.
State of the Art and Advanced DSP Based MPPT Technology ensures 30% More Energy Genration from Solar PV.
Advanced Charge Sharing ensures Optimum Saving of Electricity.
ECO Mode / Grid Mode / Main Mode Selection.
Remote Monitoring (Optional Features).

MODEL	PCU MPPT 5KVA / 48V
PV Controller Topology	MPPT
Rated Capacity	5KVA
Battery Nominal Voltage	48V
Grid Input Voltage Range	NORMAL MODE: 100V~280V
Grid Input Voltage Range	UPS MODE: 180V~260V
Maximum Solar Input Power(W)	5000W
Maximum Solar Input Voltage (VOC)	190Voc
MPPT Oeprating Voltage Range (VMP)	70V~160V
No. Of Output Phase	1Phase
Inverter Output Voltage at Nominal DC	230V+2%
Output Frequency	50Hz+0.5%
THD	<3%(at Linear Load)
Switching Element (MPPT Charger)	IGBT
Peak Charge Controller Efficiency	98%
Output Waveform	Pure Sinewave
Transfer Time	NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec
Transfer Time	UPS MODE: Mains to Back-up <12mSec Back-up to Mains <10mSec
LCD Display Parameters	Battery voltage & Current / Mains Voltage & Frequency PV Power, Total Genaration & Today's Genaration / Load Power, Load Voltage, Current & Frequency (Inv. Mode Only) / Time & Date Battery Charging / Discharging Status / User Setting & Factory Setting.
Protection Status Display	Overload, Shrot Circuit, Battery & PV Reverse Polarity Battery Over/Under Voltage, Battery Current Limit, Mains Over / Under Voltage. system Over Temprature & Grid/Load/PV Surge Protection (MOV).
Clearance on All Side for Installation	Recommended 1 Feet
Operating Temperature / Realative Humidity	0~50°C / 5%-95% (Non Condensable)
Weight (Kgs.)	Net: 52.95Kgs / Gross: 55.55Kgs
Dimension (LxWxH) in MM	448.5x275x611

Positive Power Tolerance Modules.
Highly Classified A-Grade Solar Cells for Lesser Degradation and High Energy.
Micro Crack Free Panels-100% EL Tested Before and After Lamination.
High Conversion Efficiency based on Leading Innovative Photo Voltaic Technologies.
PID Free Modules with Long Term Reliability.
Anti-Reflective Coating Glass Available.
Advance IP67/IP68 Junction Box for long-term weather endurance.
RFID Tag Available.
Sustain Heavy Wind and Snow Loads (2400Pa and 5400Pa).
Excellent Performance in Low Light.
Salt Mist, Ammonia, Blowing Sand and Hail Resistant.
Ideal for Off-Grid as well as On-Grid Applications.
IP67 rated MC4 Compatible Connectors.
EVA Encapsulation and Anti Reflection Coating for better Module Protection.

Technical Info Nominal Maximum Power (Pm)	320Watts/24V
Open Circuit Voltage (Voc)	45V
Short Circuit Current (Isc)	9.17A
Voltage at Maximum Power (Vmp)	36.20V
Current at Maximum Power (Imp)	8.84A
Maximum System Voltage	1000V
