Package No 08

USAGE: 3400W LOAD STATUS & 6:04 hrs BACK-UP TIME

Rs. 3,004,206.00 _{Price Without
Solar}
Rs. 4,855,566.00 _{Price With Solar}

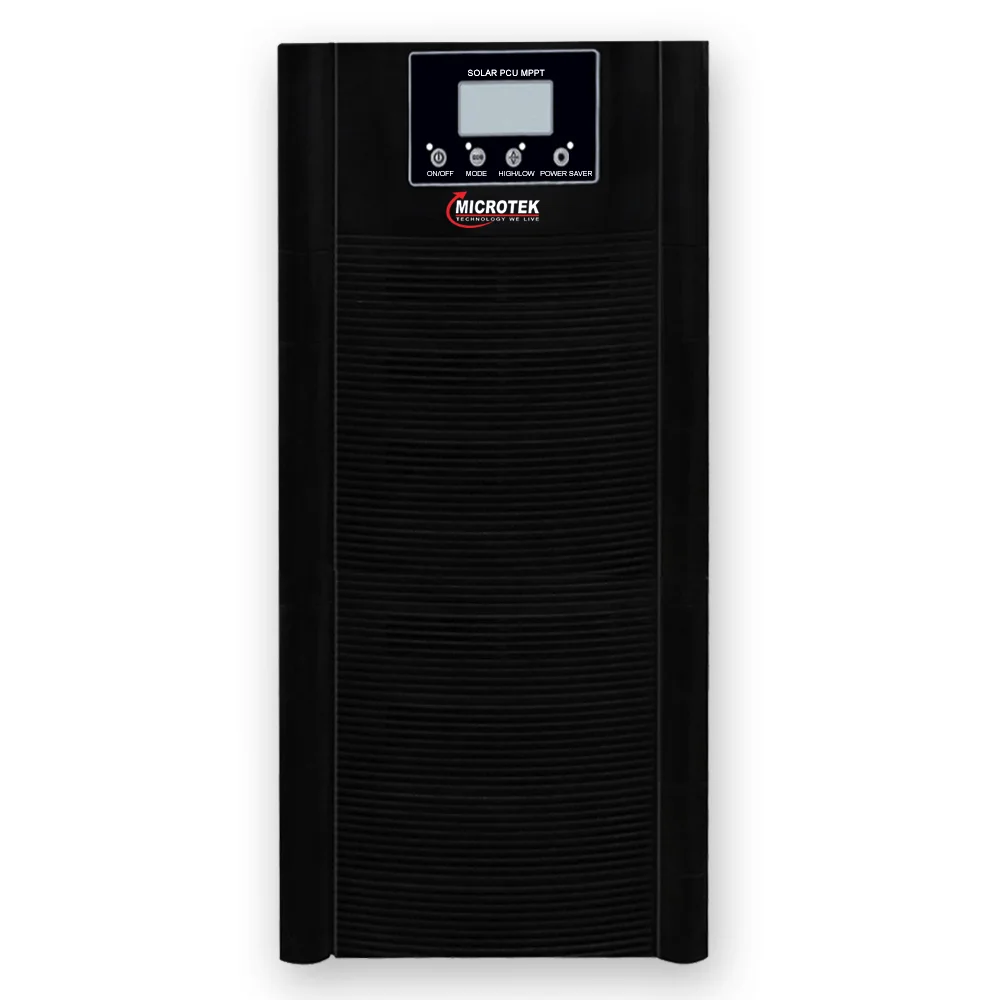

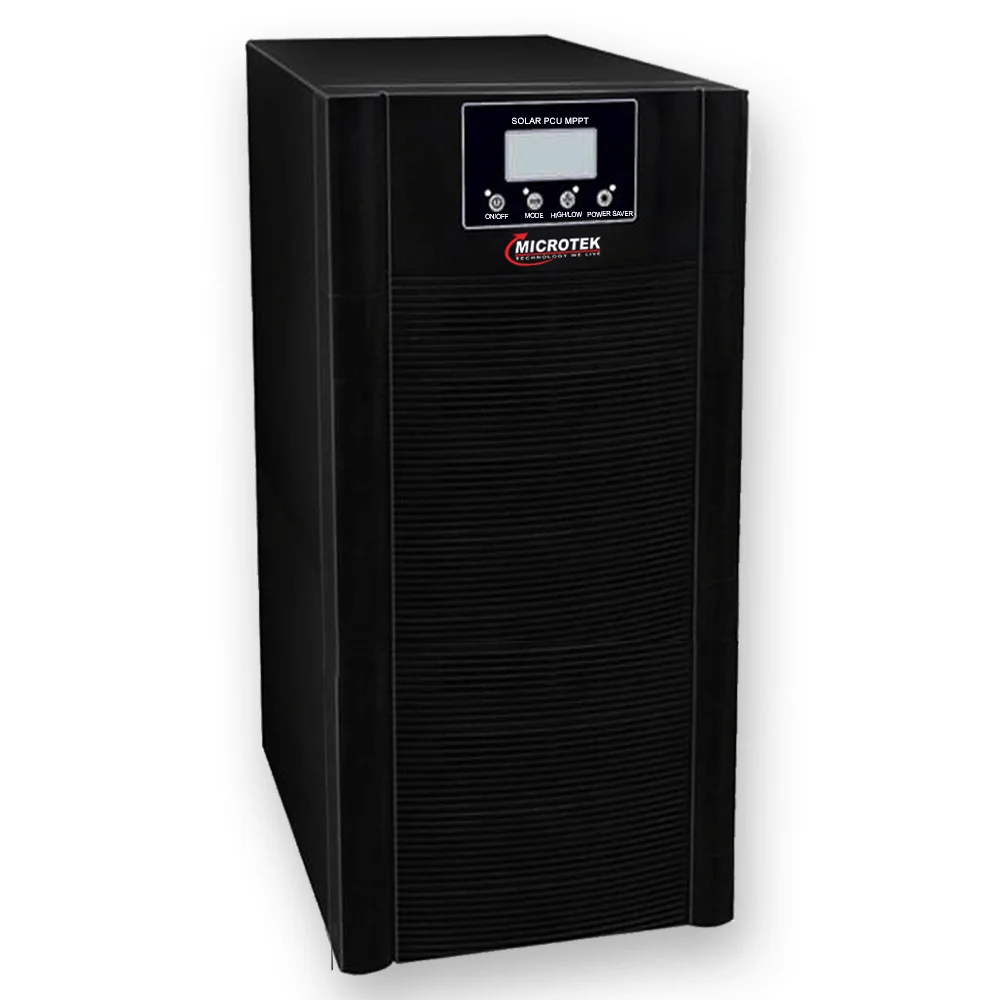

INVERTER	HI-END MPPT PCU 10070/120V (2 YEARS WARRANTY)
SOLAR PANELS	320W-24 UNITS (10 YEARS PRODUCT WARRANTY)(25YEARS PERFORMANCE WARRANTY FOR 80% POWER OUT-PUT)
BATTERY	12V/250AH (3 YEARS WARRANTY)

Request a Quote

Key Features

High Efficiency Microtek Solar TRUE MPPT PCU are Based on DSP Technology.
Pure DSP Sine Wave Technology.
User Friendly SMart Multicolor LCD Display.
State of The Art & Advanced MPPT Technology Ensure 30% More Energy Genration FOrm Solar PV.
Advance Real Time Clock Technology Ensure Optimum Saving of ElectronicBill.
Smart LCD Displays Total Solar Energy Genration (in KWH).
Provision FOr Setting Critical Parameters of Solar Thru SMart Front Panel.
Smart Logic Built in Software to Maintain Battery Gravity & Enhance Battery Life.
Battery Types Support : Tubular, SMF & Flat Plate.
Remote Monitoring Thru WI-FI/LAN/GPRS (Optional Feature).

Technical Specifications

MODEL	PCU MPPT 10070 / 120V
PV Controller Topology	MPPT
Rated Capacity	10KVA
Battery Nominal Voltage	120V
Grid Input Voltage Range	NORMAL MODE: 100V~280V
Grid Input Voltage Range	UPS MODE: 180V~260V
Maximum Solar Input Power(W)	9250W
Maximum Solar Input Voltage (VOC)	350Voc
MPPT Oeprating Voltage Range (VMP)	180V~280V
No. Of Output Phase	1Phase
Inverter Output Voltage at Nominal DC	230V+3%
Output Frequency	50Hz+1%
THD	<3%(at Linear Load)
Maximum PV Input Current (A)	34 + 1A ( 17A/ Channal, Total Channel-2 )
Peak Charge Controller Efficiency	98%
Max. Battery Charging Current From PV (A)	40 Amps:(Defualt) Settable From 5 to 50 Amps For Battery
Max. Battery Charging Current From Grid (A)	16 Amp Default(Settable From 5Amp to 16Amp)
Continious Output Power (W)	8 000W
Transfer Time	NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec
Transfer Time	UPS MODE: Mains to Back-up <12mSec Back-up to Mains <10mSec
Protections	Battery Over-Voltage, Overcharge, PV Reverse Polarity, PV Reverse Current Flow, PV Surge, Overload, Inverter Over Temprature & Load Short Circuit Protections
Intelligent Sharing of PV Current & Grid	State of the Art Inbuilt Technology ensures four Leval of Solar Saving Setting SL1, SL2, SL3 & SL4 Selectable From Front Panel Meeting Requirement of all Type of Users.
Clearance on All Side for Installation	Recommended 1 Feet
DC Input Volt. High Cut Protection/Recover	Available
Most Advanced Real Time Clock Technology	RTC ensures Optimum Saving Of Solar Energy
Operating Temperature / Realative Humidity	0~45°C / 5%-95% Non Condensable
Weight (Kgs.)	Net: 78.670 / Gross: 83.500 KG
Dimension (LxWxH) in MM	484x277x775

Key Features

Positive Power Tolerance Modules.
Highly Classified A-Grade Solar Cells for Lesser Degradation and High Energy.
Micro Crack Free Panels-100% EL Tested Before and After Lamination.
High Conversion Efficiency based on Leading Innovative Photo Voltaic Technologies.
PID Free Modules with Long Term Reliability.
Anti-Reflective Coating Glass Available.
Advance IP67/IP68 Junction Box for long-term weather endurance.
RFID Tag Available.
Sustain Heavy Wind and Snow Loads (2400Pa and 5400Pa).
Excellent Performance in Low Light.
Salt Mist, Ammonia, Blowing Sand and Hail Resistant.
Ideal for Off-Grid as well as On-Grid Applications.
IP67 rated MC4 Compatible Connectors.
EVA Encapsulation and Anti Reflection Coating for better Module Protection.

Technical Specifications

Technical Info Nominal Maximum Power (Pm)	320Watts/24V
Open Circuit Voltage (Voc)	45V
Short Circuit Current (Isc)	9.17A
Voltage at Maximum Power (Vmp)	36.20V
Current at Maximum Power (Imp)	8.84A
Maximum System Voltage	1000V
