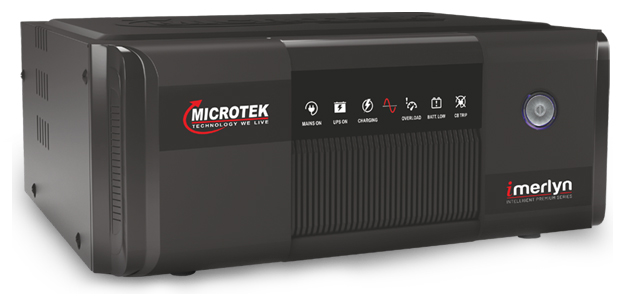

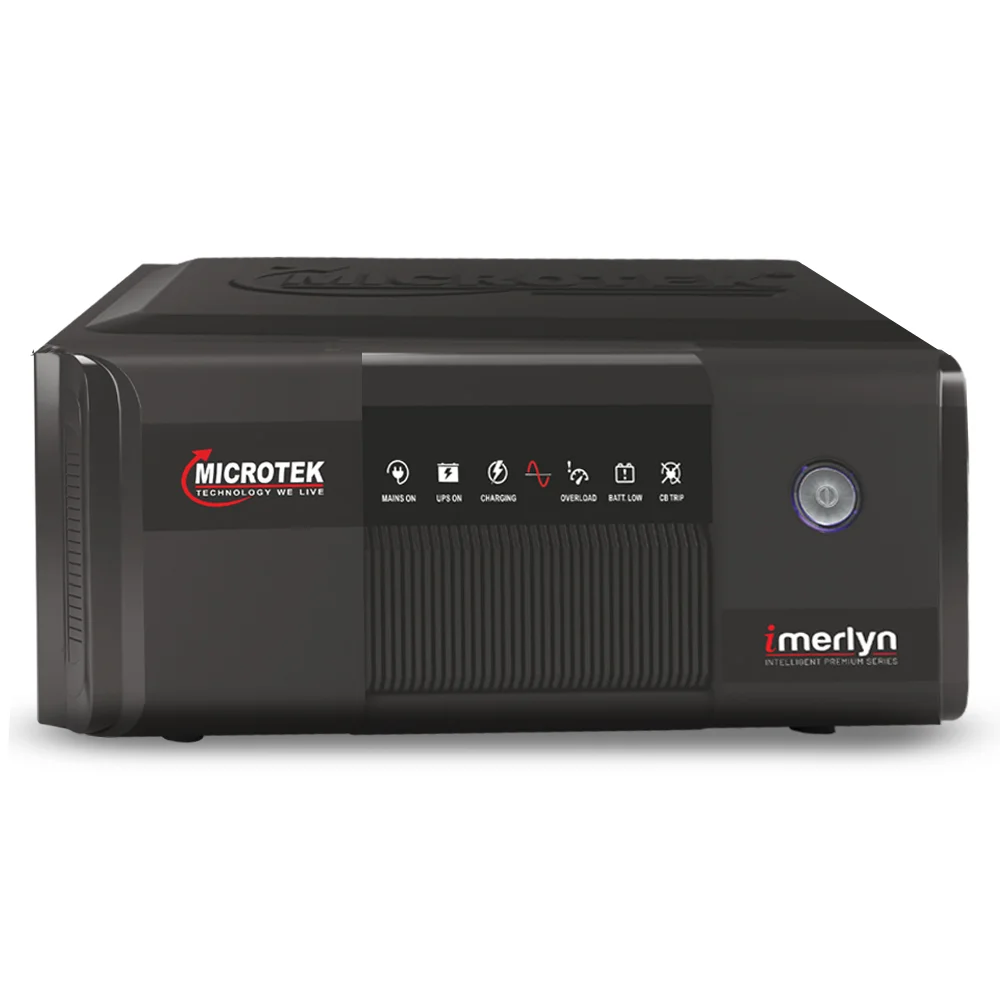

iMERLYN Pure Sinewave UPS Model 1850 (24V) SW
Selling Price : Rs. 77,820.05
- Micro controlled based Intelligent Control Design.
- Display Indications (Status & Fault).
- High Peak Current Handling Capability.
- High Voltage Surge Protection.
- Charging Mode, Load Type & Battery Type Selection Switches.
- Re-Settable Circuit Breaker.
- Smart Thermal Management Protection.
Technical Details
|
MODEL |
iMERLYN 1850 (24) SW |
| INPUT | |
|
INPUT VOLTAGE (Standard range) |
100V ~ 300V |
|
INPUT VOLTAGE (Narrow Range) |
180V ~ 260V |
| OUTPUT | |
|
OUTPUT VOLTAGE (Main Mode) |
Same as INPUT |
|
OUTPUT VOLTAGE (UPS Mode) |
210V + 10% |
|
OUTPUT FREQUENCY (UPS Mode) |
50 Hz ± 0.1 Hz |
|
OUTPUT WAVE FROM (Main Mode) |
Same as INPUT |
|
OUTPUT WAVE FROM (UPS Mode) |
Pure Sinewave |
| CHANGE-OVER | |
|
SWITCHOVER (Mains>UPS / UPS>Mains) |
AUTOMATIC |
|
UPS TRANSFER TIME |
<15 msec |
| TECHNOLOGY | |
|
DESIGN |
Micro Controller Based Design With IPS Technology |
|
BATTERY CHARGING CURRENT |
Constant Charging Approx. 10% of the Rated Battery Current in AH |
|
UPS OVERLOAD / UPS SHORT CIRCUIT |
110% / 300% |
|
BROWNS ON MAINS VOLTAGE |
100V + 40V |
|
EFFICIENCY (BATTERY MODE) |
>80% |
|
AUTO RESET FEATURE |
YES |
|
OPERATING TEMPRATURE |
0°~45° Degree Celsius |
|
WEIGHT (KG) |
17.48 KG |
|
DIMENTION (LxWxH) in CM |
43.3x46.3x23.2 CM |
