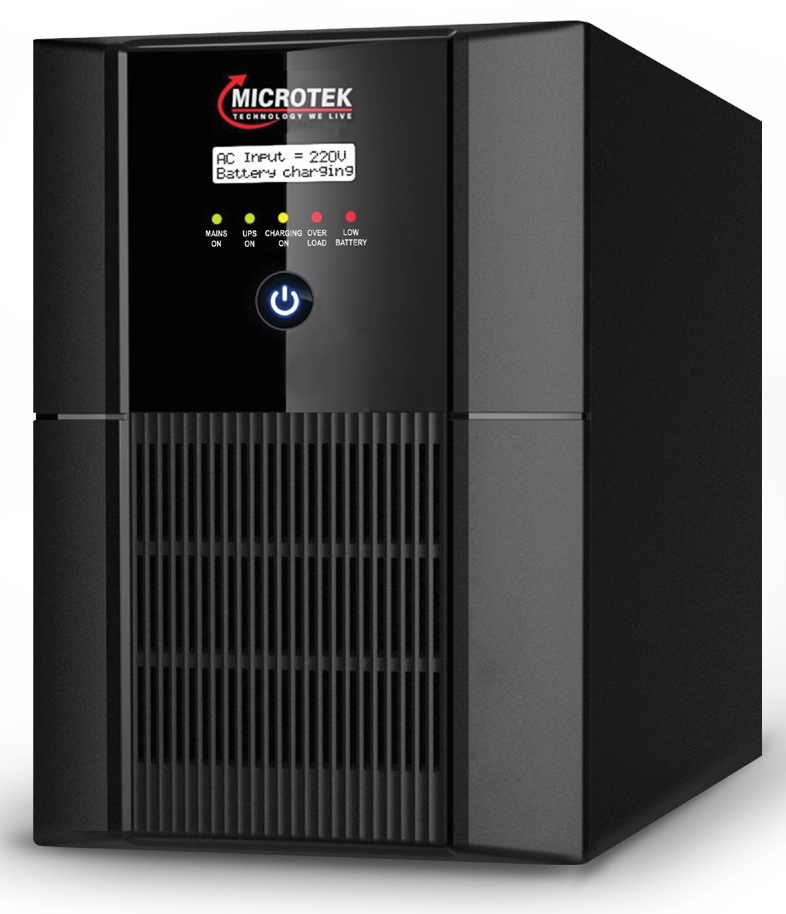

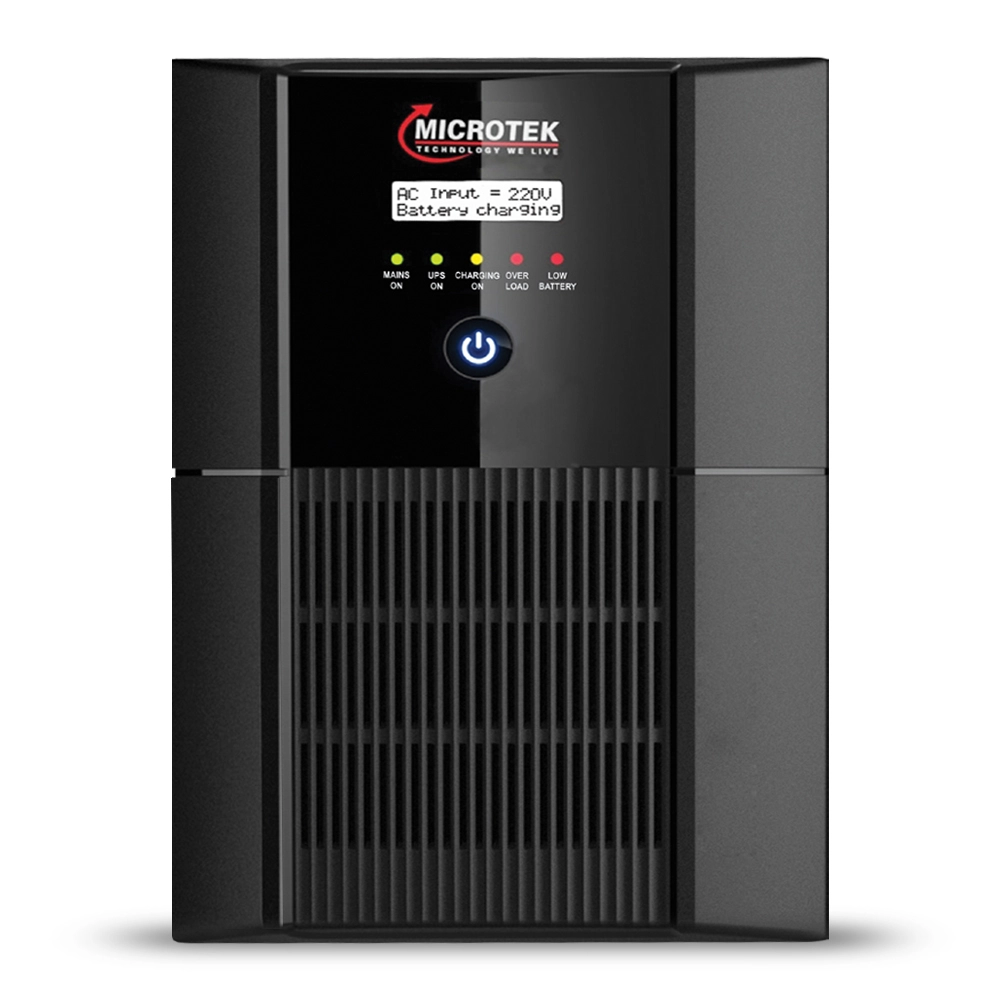

JUMBO HOME UPS Model - JM SW 3000+/24V (Working Power 2.5KVA/2000W)
Selling Price : Rs. 139,507.10
- DSP/High-end micro controller based PWM technology using MOSFET: DSP/High-end micro controller used where the internal digital frequency control is at a speed of as high as 40 MIPS (millions instructions per Second).
- ACEC (Analog Compare Error Correction) technology based PWM for the generation of Pure Sine wave: Using ACEC technology the PWM is corrected.
- Boost Based PWM Controlled Intelligent Multistage Battery Management Charging Technology. The input power factor maintains 0.85 which reduce the electricity bills.
- Protections: Wiring Fault, Overload, Short Circuit, Battery low, Reverse Phase, Reverse Battery Protection.
- ASC (Assessing System Configuration) software technique is being incorporated. The software verifies all the critical system parameters before the system starts, & keep on assessing the system parameters while the system is running.
- Performance: Delivers unmatched noise free performance.
- UPS Mode: Very useful with computer type of application, Music studio or medical etc.
- Replicates Mains: Ensure same power quality as from mains with a crest factor of as high 3.7
- Display: LCD/LED Indication for status & Fault, Load & Battery Indication.
- PLPO: Peak load Peak Output ensures high load handling capacity.
- Generator Compatible.
Technical Details
|
MODEL UPS |
JM SW 3000+/24V |
|
Capacity / Rating |
2.5KVA / 2000W |
|
Standard Input Voltage |
100V~280V |
|
Narrow Input Voltage |
180V~260V |
|
Output Voltage on Main Mode |
Same as Input |
|
Output Voltage on UPS mode |
220V+10% |
|
Output Frequency on UPS Mode |
50Hz+0.5Hz |
|
Switching form mains to UPS and UPS to mains |
Automatic |
|
Output wavefrom on mains mode |
Same as input |
|
Output wavefrom on backup mode |
Pure Sinewave |
|
Battery charging current |
Max Charge Current 20A+3A |
|
Battery Charger |
Boost Based PWM Control Multi-Stage IBM technology |
|
Efficinecy |
>80% |
|
Input Brown Out Voltage |
100V+10V |
|
UPS Overload |
108% of the Rated Capacity |
|
Technology |
DSP Based Smart Control Design |
|
Auto Reset Feature |
Yes |
|
Environmental Parameters |
Operating Temprature: 0~45*C / Acoustic Noise at 1 Mtr: <60dB |
|
Mains to Bypass |
Rotary/Rocker Bypass Switch |
|
Display |
LCD/LED Display Indicator |
