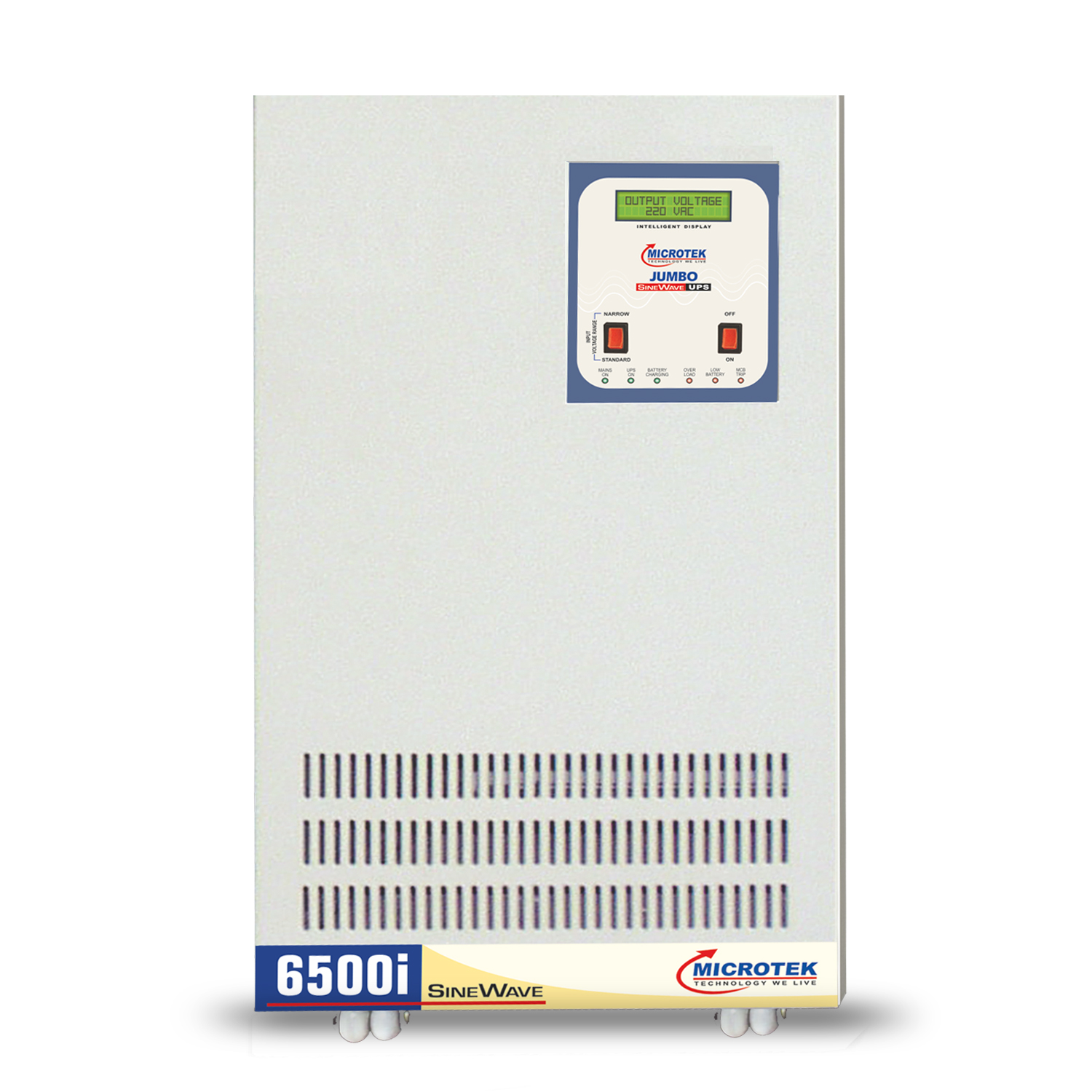

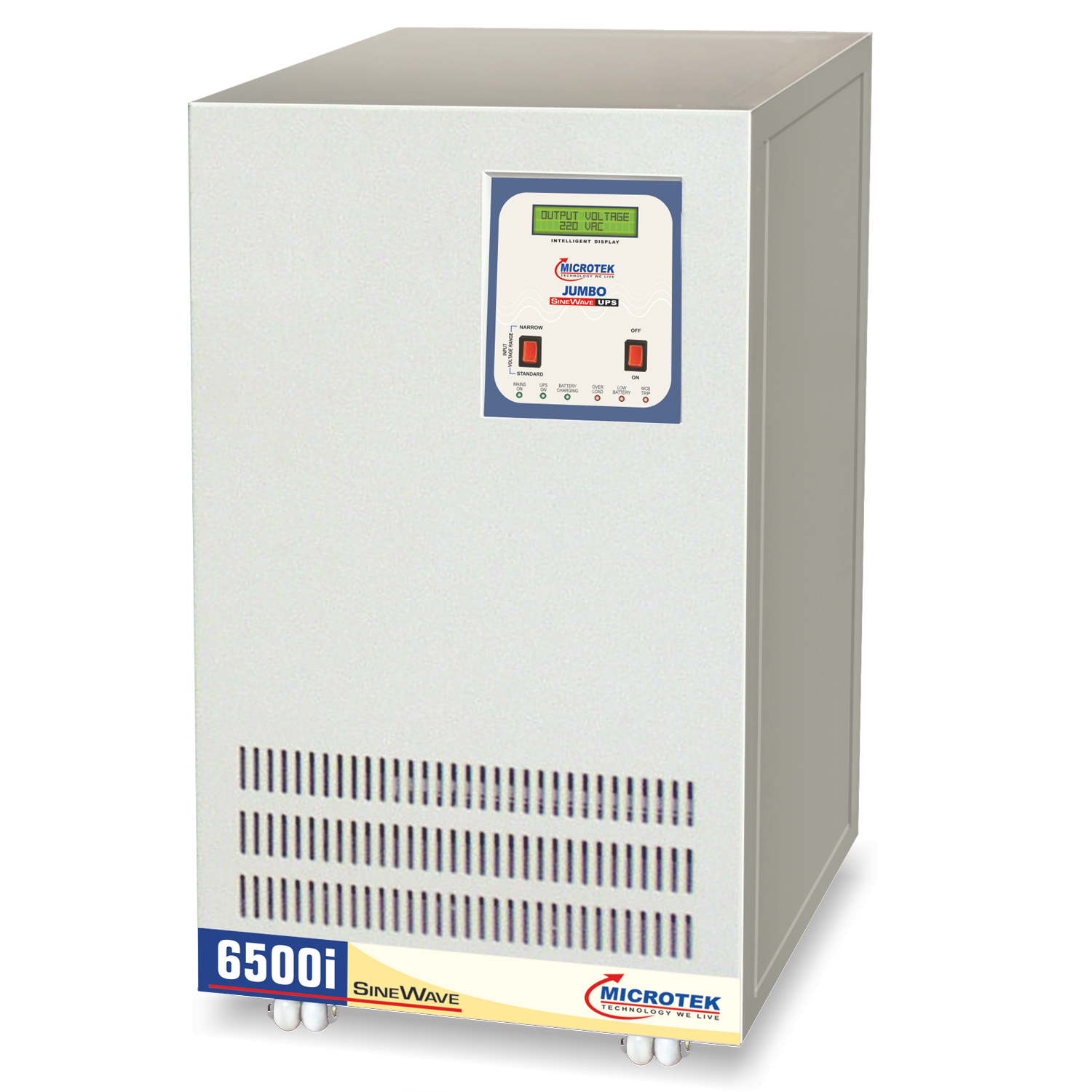

Hi-GRADE JUMBO UPS JM SW 6500i/96V
Actual Price : Rs. 0.00
Selling Price : Rs. 0.00 Out Of Stock
Selling Price : Rs. 0.00 Out Of Stock
- OUT OF STOCK
- Advanced Battery Management (ABM) for Longer Battery Life and Quick Charging
- Micro Processor based PWM Technology using Hi-Grade IGBT’s
- LED & LCD Display Indications.
- Best Suited for most High Capacity Sophisticated Applications.
- Generator Compatible.
- In-built Time Delay Relay (TDR).
Technical Details
| INPUT | |
|
INPUT VOLTAGE (Standard range) |
100V ~ 280V |
|
INPUT VOLTAGE (Narrow Range) |
180V ~ 265V |
| OUTPUT | |
|
OUTPUT VOLTAGE (Main Mode) |
Same as INPUT |
|
OUTPUT VOLTAGE (UPS Mode) |
220V + 10% |
|
OUTPUT WAVE FROM (Main Mode) |
Same as INPUT |
|
OUTPUT WAVE FROM (UPS Mode) |
Pure Sinewave |
| CHANGE-OVER | |
|
SWITCHOVER (Mains>UPS / UPS>Mains) |
AUTOMATIC |
|
UPS TRANSFER TIME |
<15 msec |
| TECHNOLOGY | |
|
UPS OVERLOAD / UPS SHORT CIRCUIT |
105%~125%(4 Times Auto Reset) / 300% |
|
EFFICIENCY (BATTERY MODE) |
>80% |
|
TOTAL HARMONIC DISTORTION (Resistive Load) |
Less than 3% |
|
AUTO RESET FEATURE |
YES |
|
INPUT DC RANGE |
84 ~ 114 V ± 1 Volt |
|
MAXIMUM CHARGING CURRENT |
16 Amps(Settable ± 3 Amps) |
|
SEPARATE OUTPUT WITH TDR |
1 minute TDR |
|
OPERATING TEMPRATURE |
0 to 45 Degree Celsius |
