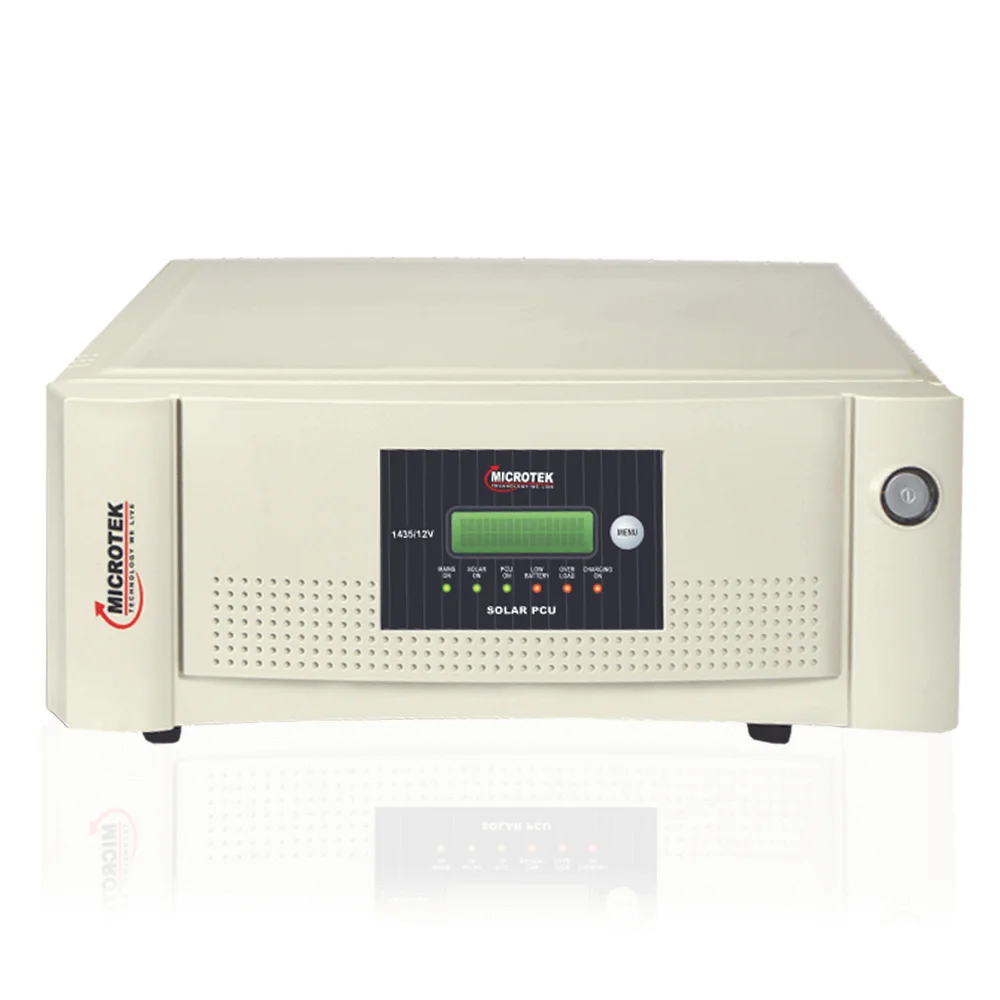

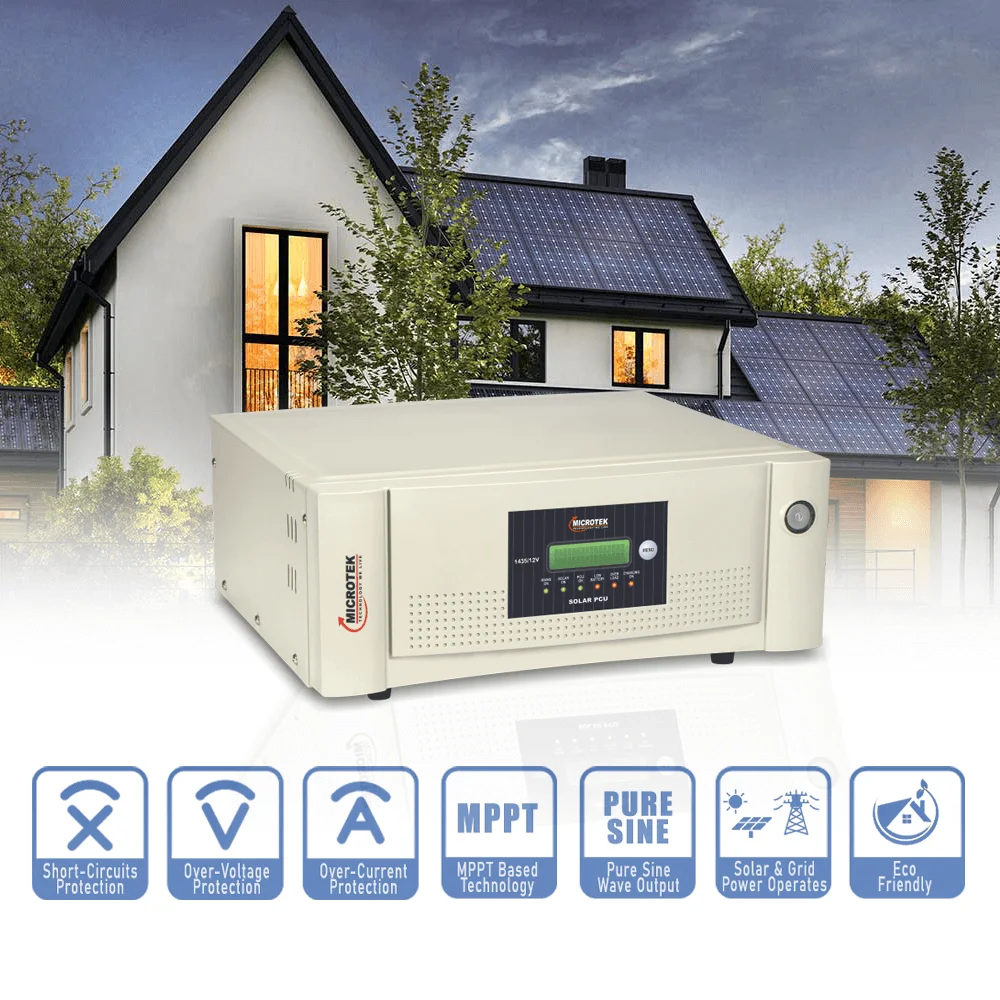

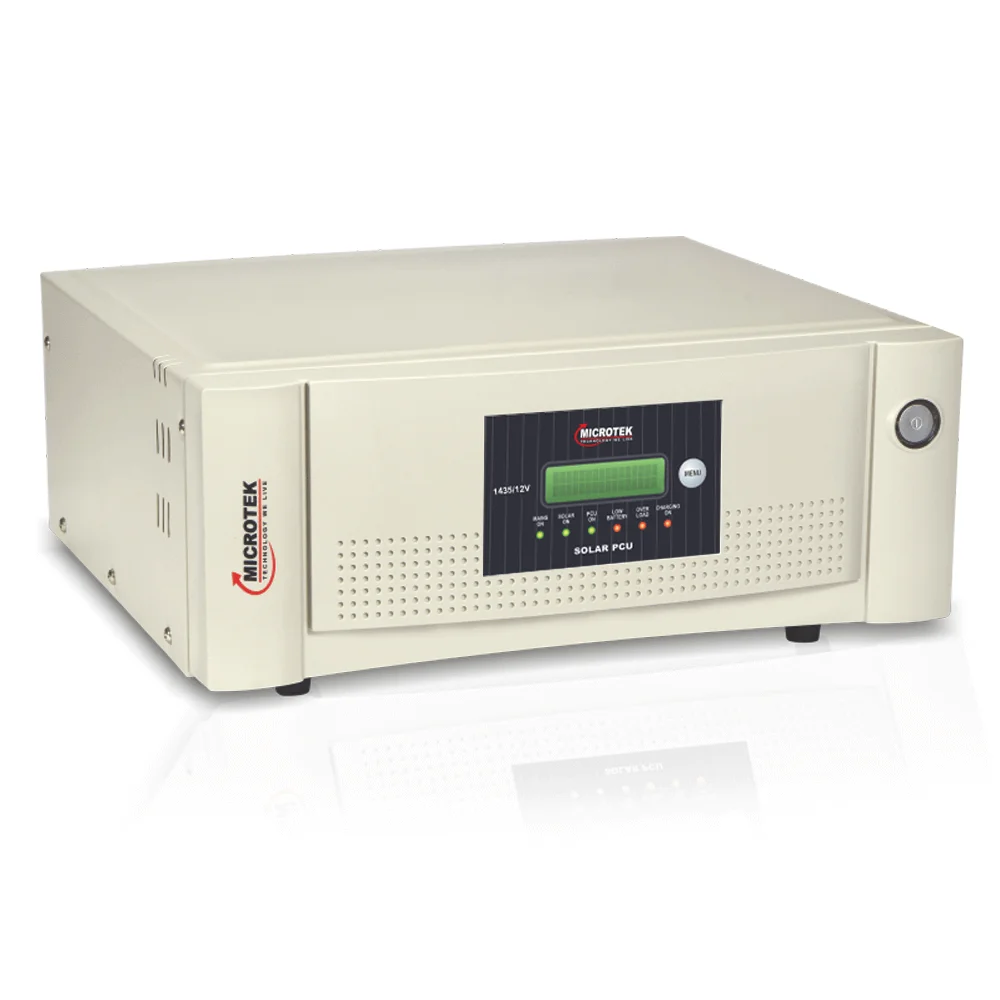

SOLAR PCU 1435/12V
Actual Price : Rs. 84,296.00
Selling Price : Rs. 71,651.60
Selling Price : Rs. 71,651.60
- Micro-Controller DSPIC Based Intelligent Control Design.
- Dual Charging,Mains Mode and Solar Mode.(Solar Panel upto 600W-12V model).
- Pure Sine Wave Regulated Output.
- Smart PWM Controlled multistage ATM (Automatic Trickle Mode) Charging.
- LCD and Graphical Display Indications (Status & Fault).
- Smart and Faster Overload Sense and Short Circuit Protection.
- Auto Reset Feature.
- Mains Input Voltage Range Selection.
- PV Mode ON/OFF Selection Switch.
- Charging Voltage Selection Switch.
- Grid Charging Enable /Disable Selection.
- Pure Sine wave Regulated Output.
Technical Details
|
Model |
SOLAR PCU 1435/ 12V |
|
Capacity (Rated Power) |
1135VA / 12 V |
|
Capacity (Maximum PV Power support) |
600 WP |
|
Input |
|
|
Input Voltage (Standard Range) |
100 V ~ 300 V |
|
Input Voltage (Narrow Range) |
180V ~ 260 V |
|
Nominal Input Battery Voltage |
12 V |
|
Output |
|
|
Output Frequency |
50 Hz ± 0.5 Hz |
|
Output Waveform |
Pure Sine Wave |
|
Technology |
|
|
Solar Charger Type |
PWM |
|
Max. Solar Panel Current |
35 Amps |
|
Mains Re-Connect Voltage |
11.6 V + 0.3 V DC |
|
Mains Dis-Connect Voltage |
14.4 V + 0.3 V DC |
|
Solar UPS Overload |
110% |
|
Solar UPS Short Circuit |
300% |
|
Solar UPS Transfer Time |
< 12 msec |
|
Grid Chg. Enable Mode |
Luxury Mode |
|
Grid Chg. Disable Mode |
Economy Mode |
