Wave Type: Pure Sine Wave
Charger Technology: Pulse with modulation
Solar panel current: 50 amps
Solar panel VOC: 45-50V
Transfer Time: ≤ 12 msec.
Mains Re-Connect / Dis-Connect Voltage: 23 V & 28.2 V

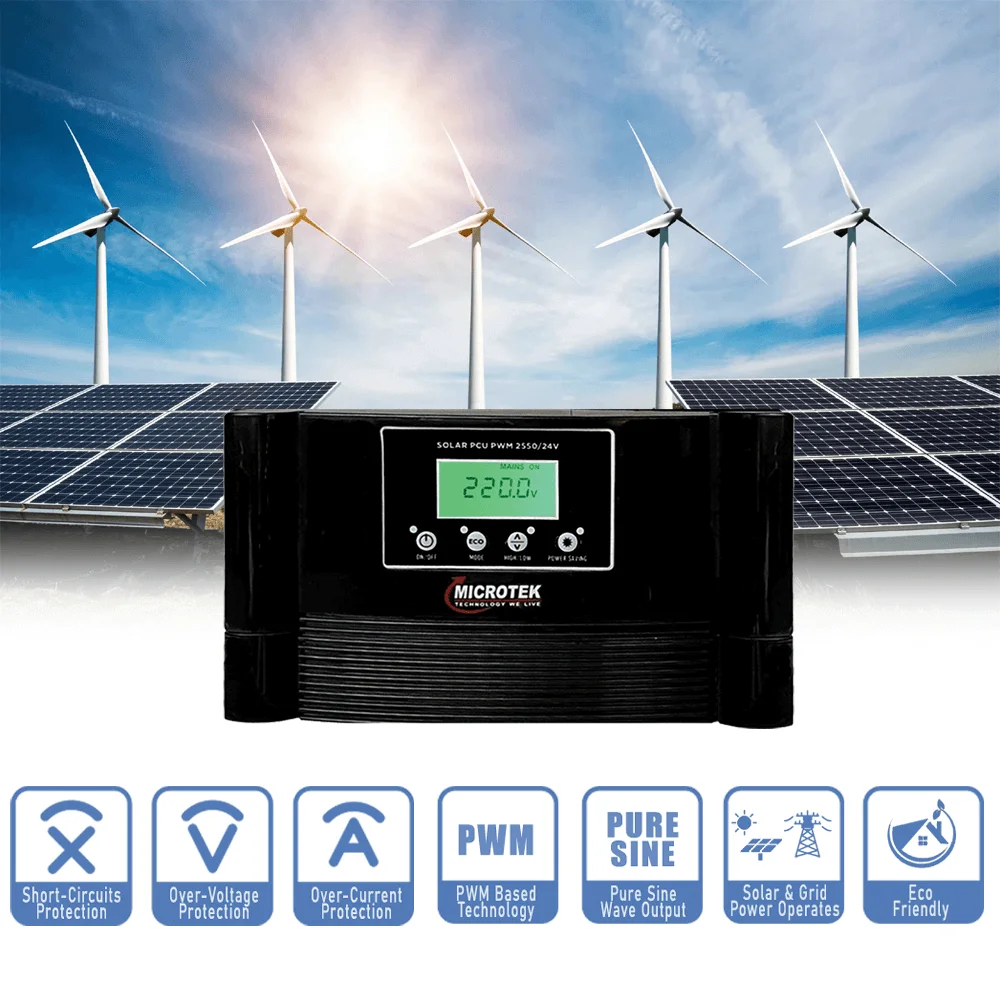

Protections: Short Circuit, High voltage, Low battery shutdown
Pure Sine Wave Technology using PWM topology with inbuilt Real Time Clock.
Smart solar selection for max. utilization of Solar Power.
Intelligent Battery Charging and Charge sharing with Mains / Charging by Solar Power Only.
Maintain Gravity of battery by a special program.
Provision for setting of critical parameters.

View More Details

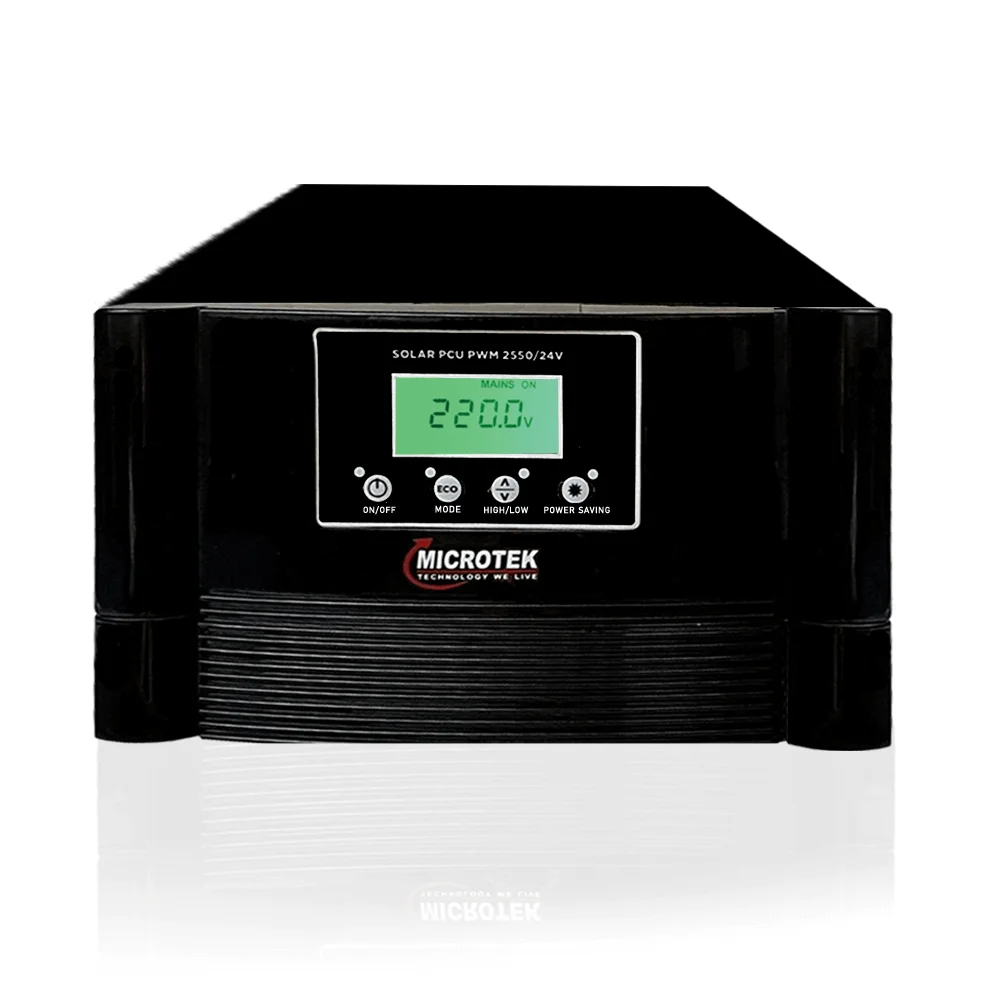

MODEL	PCU PWM 2550 / 24V
PV Controller Topology	PWM
Rated Capacity	2.2KVA
Battery Nominal Voltage	24V
Grid Input Voltage Range	NORMAL MODE: 90V+5V~290V+5V
Grid Input Voltage Range	UPS MODE: 180V+5V~265V+5V
Maximum Solar Input Power(W)	1800W
Maximum Solar Input Voltage (VOC)	49Voc
Solar Charger Controller	50A
No. Of Output Phase	1Phase
Inverter Output Voltage at Nominal DC	230V+3%
Output Frequency	50Hz+0.1HZ
THD	<3%(at Linear Load)
Output Waveform on UPS Mode	Pure Sinewave
Battery Charging Current: Mains	Constant Charging Approx. 10% of the Rated Battery Current in AH
UPS Transfer Time	NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec
UPS Transfer Time	UPS MODE: Mains to Back-up <12mSec Back-up to Mains <10mSec
UPS Overload / UPS Short Circuits Protections	Available
Reverse Panel Protection	Available
Thermal Protection	Both in Grid Charging & Backup Mode
DC Input Volt. High Cut Protection/Recover	Available
Most Advanced Real Time Clock Technology	RTC ensures Optimum Saving Of Solar Energy
Operating Temperature	0~45°C
Weight (Kgs.)	Net: 16.960 / Gross: 18.300
Dimension (LxWxH) in MM	405x370x260
