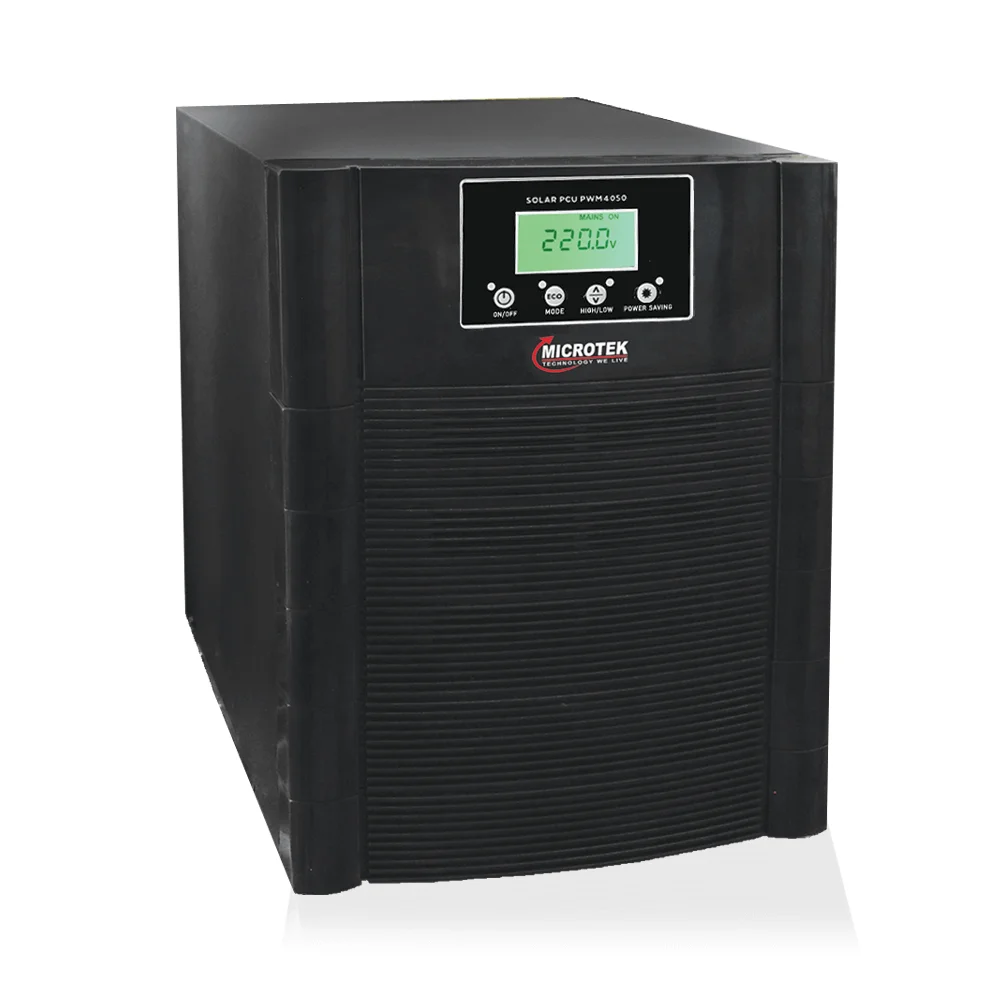

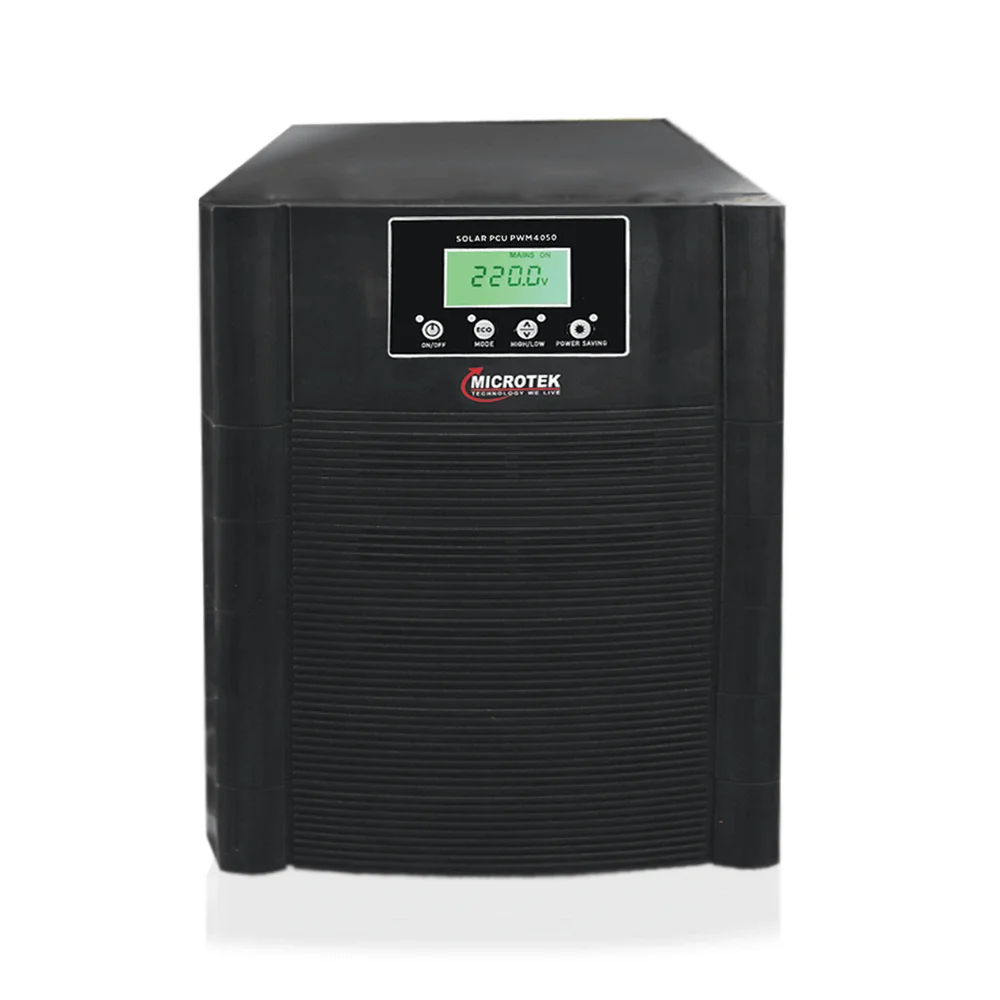

HI-END PWM PCU 4050 48V
Selling Price : Rs. 245,883.75
- Wave Type: Pure Sine Wave.
- Charger Technology: Pulse with modulation.
- Pure Sinewave Solar PCU PWM Are Based On DSP Technology.
- State of the art Pure Sineware Technology.
- Smart Real Time Clock solar Selection to Miximise Money saving.
- User Friendly Solar Selection Switch to save Power.
- Battery Charger Even at 90V Low Voltage.
- Smart LCD Displays Total Solar Energy Genration(in KWH).
- Battery Types Support: Tubular, SMF, Flate Plate.
- Remote Monitoring Through WIFI/LAN/GPRS (Optional Feature).
Technical Details
|
MODEL |
PCU PWM 4050 / 48V |
|
PV Controller Topology |
PWM |
|
Rated Capacity |
3.2KVA |
|
Battery Nominal Voltage |
48V |
|
Grid Input Voltage Range |
NORMAL MODE: 90V+5V~290V+5V |
|
UPS MODE: 180V+5V~265V+5V |
|
|
Maximum Solar Input Power(W) |
3600W |
|
Maximum Solar Input Voltage (VOC) |
98Voc |
|
Solar Charger Controller |
50A |
|
No. Of Output Phase |
1Phase |
|
Inverter Output Voltage at Nominal DC |
230V+3% |
|
Output Frequency |
50Hz+0.1HZ |
|
THD |
<3%(at Linear Load) |
|
Output Waveform on UPS Mode |
Pure Sinewave |
|
Battery Charging Current: Mains |
Constant Charging Approx. 10% of the Rated Battery Current in AH |
|
UPS Transfer Time |
NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec |
|
UPS MODE: Mains to Back-up <12mSec Back-up to Mains <10mSec |
|
|
UPS Overload / UPS Short Circuits Protections |
Available |
|
Reverse Panel Protection |
Available |
|
Thermal Protection |
Both in Grid Charging & Backup Mode |
|
DC Input Volt. High Cut Protection/Recover |
Available |
|
Most Advanced Real Time Clock Technology |
RTC ensures Optimum Saving Of Solar Energy |
|
Operating Temperature |
0~45°C |
|
Weight (Kgs.) |
Net: 28.970 / Gross: 31.300 |
|
Dimension (LxWxH) in MM |
400x380x465 |
