Actual Price : ~~Rs. 487,200.00~~
Selling Price : Rs. 414,120.00

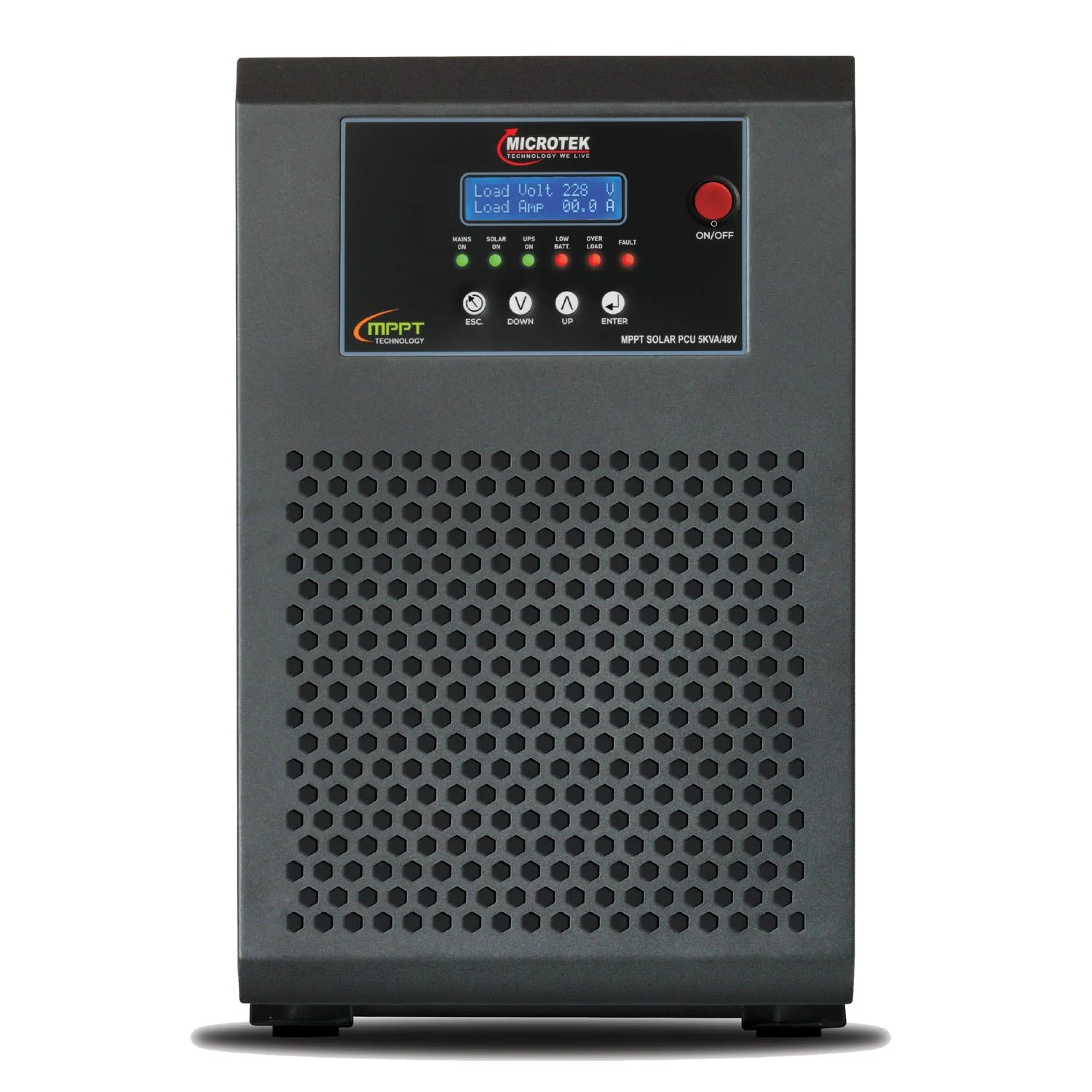

High Efficiency Microtek True MPPT Solar PCU.
Advanced DSP Based Technology.
adaptive MPPT Logic for excellent power generation.
Pure Sinewave Output. User Friendly LCD Display.
State of the Art and Advanced DSP Based MPPT Technology ensures 30% More Energy Genration from Solar PV.
Advanced Charge Sharing ensures Optimum Saving of Electricity.
ECO Mode / Grid Mode / Main Mode Selection.
Remote Monitoring (Optional Features).

View More Details

MODEL	PCU MPPT 5KVA / 48V
PV Controller Topology	MPPT
Rated Capacity	5KVA
Battery Nominal Voltage	48V
Grid Input Voltage Range	NORMAL MODE: 100V~280V
Grid Input Voltage Range	UPS MODE: 180V~260V
Maximum Solar Input Power(W)	5000W
Maximum Solar Input Voltage (VOC)	190Voc
MPPT Oeprating Voltage Range (VMP)	70V~160V
No. Of Output Phase	1Phase
Inverter Output Voltage at Nominal DC	230V+2%
Output Frequency	50Hz+0.5%
THD	<3%(at Linear Load)
Switching Element (MPPT Charger)	IGBT
Peak Charge Controller Efficiency	98%
Output Waveform	Pure Sinewave
Transfer Time	NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec
Transfer Time	UPS MODE: Mains to Back-up <12mSec Back-up to Mains <10mSec
LCD Display Parameters	Battery voltage & Current / Mains Voltage & Frequency PV Power, Total Genaration & Today's Genaration / Load Power, Load Voltage, Current & Frequency (Inv. Mode Only) / Time & Date Battery Charging / Discharging Status / User Setting & Factory Setting.
Protection Status Display	Overload, Shrot Circuit, Battery & PV Reverse Polarity Battery Over/Under Voltage, Battery Current Limit, Mains Over / Under Voltage. system Over Temprature & Grid/Load/PV Surge Protection (MOV).
Clearance on All Side for Installation	Recommended 1 Feet
Operating Temperature / Realative Humidity	0~50°C / 5%-95% (Non Condensable)
Weight (Kgs.)	Net: 52.95Kgs / Gross: 55.55Kgs
Dimension (LxWxH) in MM	448.5x275x611
