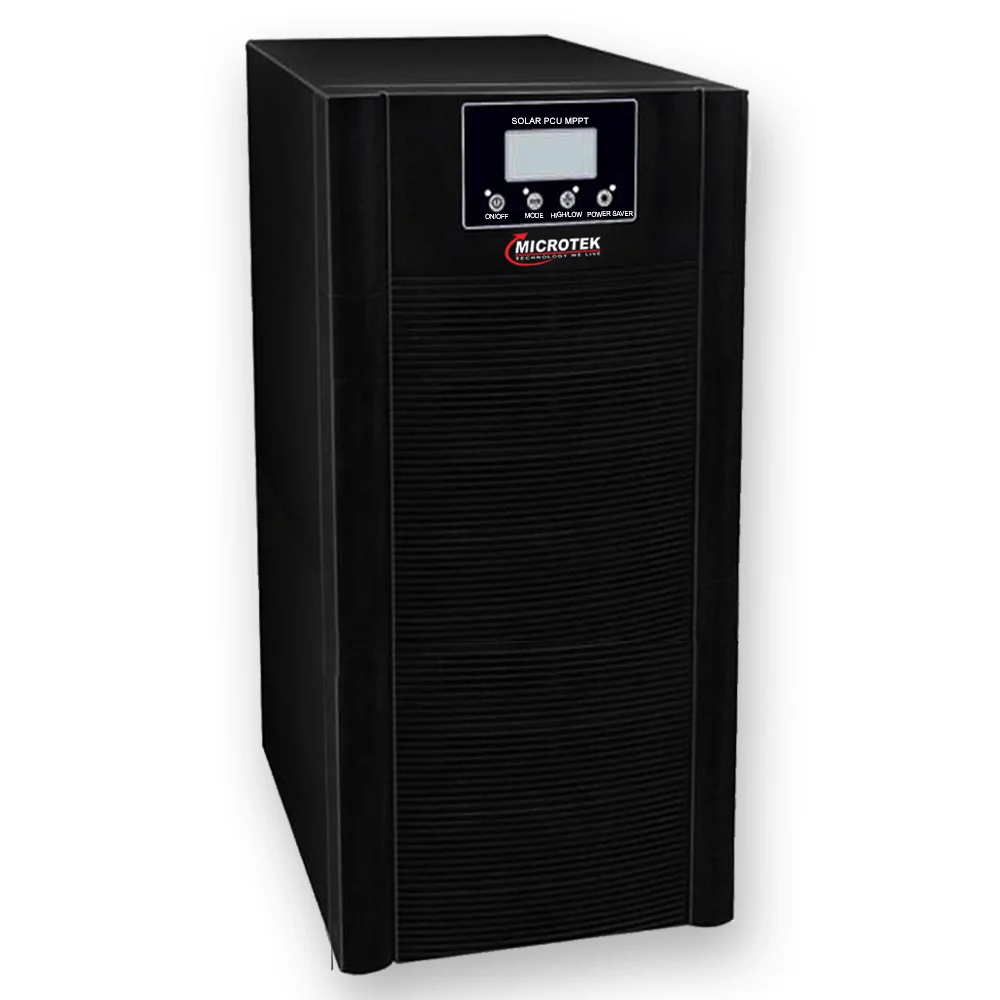

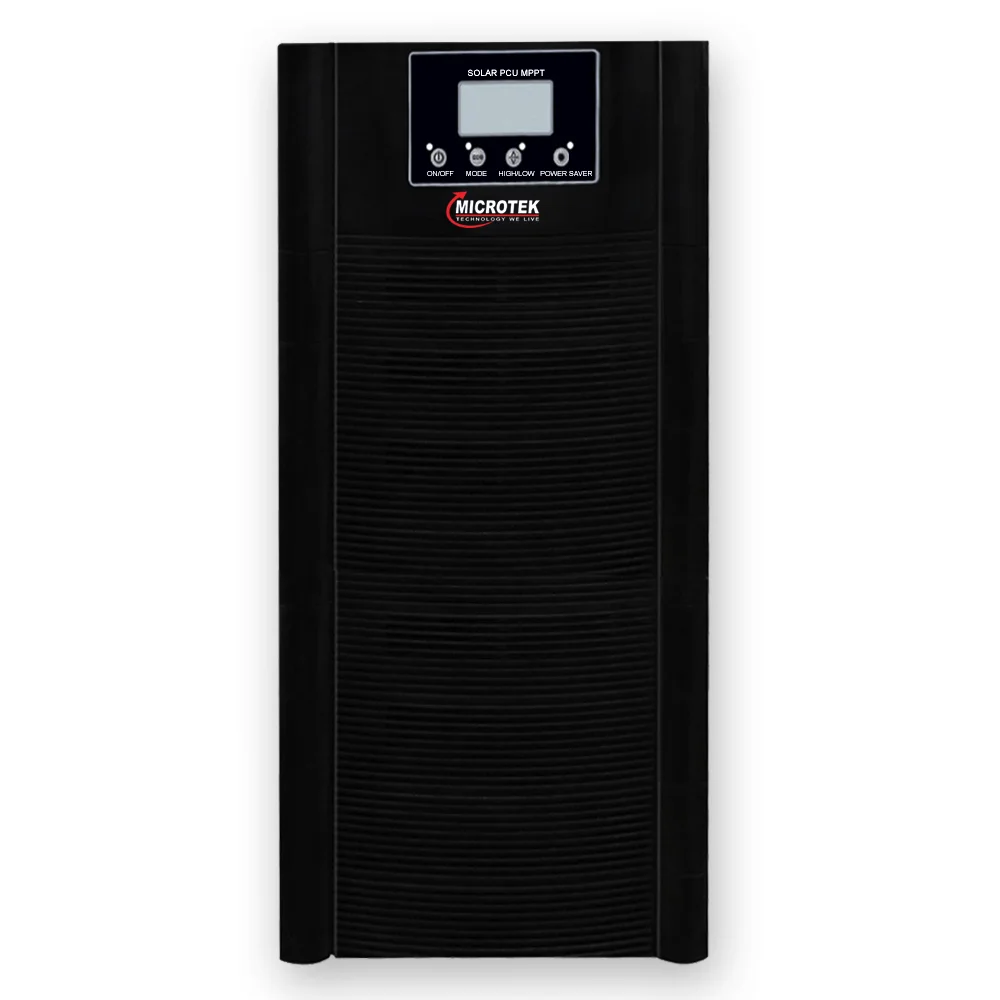

HI-END MPPT PCU 8070/96V
Selling Price : Rs. 603,925.00
- High Efficiency Microtek Solar TRUE MPPT PCU are Based on DSP Technology.
- Pure DSP Sine Wave Technology.
- User Friendly SMart Multicolor LCD Display.
- State of The Art & Advanced MPPT Technology Ensure 30% More Energy Genration FOrm Solar PV.
- Advance Real Time Clock Technology Ensure Optimum Saving of ElectronicBill.
- Smart LCD Displays Total Solar Energy Genration (in KWH).
- Provision FOr Setting Critical Parameters of Solar Thru SMart Front Panel.
- Smart Logic Built in Software to Maintain Battery Gravity & Enhance Battery Life.
- Battery Types Support : Tubular, SMF & Flat Plate.
- Remote Monitoring Thru WI-FI/LAN/GPRS (Optional Feature).
Technical Details
|
MODEL |
PCU MPPT 8070 / 96V |
|
PV Controller Topology |
MPPT |
|
Rated Capacity |
7.5KVA |
|
Battery Nominal Voltage |
96V |
|
Grid Input Voltage Range |
NORMAL MODE: 100V~280V |
|
UPS MODE: 180V~260V |
|
|
Maximum Solar Input Power(W) |
7680W |
|
Maximum Solar Input Voltage (VOC) |
280Voc |
|
MPPT Oeprating Voltage Range (VMP) |
180V~230V |
|
No. Of Output Phase |
1Phase |
|
Inverter Output Voltage at Nominal DC |
230V+3% |
|
Output Frequency |
50Hz+1% |
|
THD |
<3%(at Linear Load) |
|
Maximum PV Input Current (A) |
34 + 1A ( 17A/ Channal, Total Channel-2 ) |
|
Peak Charge Controller Efficiency |
98% |
|
Max. Battery Charging Current From PV (A) |
40 Amps:(Defualt) Settable From 5 to 50 Amps For Battery |
|
Max. Battery Charging Current From Grid (A) |
16 Amp Default(Settable From 5Amp to 16Amp) |
|
Continious Output Power (W) |
6000W |
|
Transfer Time |
NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec |
|
UPS MODE: Mains to Back-up <12mSec Back-up to Mains <10mSec |
|
|
Protections |
Battery Over-Voltage, Overcharge, PV Reverse Polarity, PV Reverse Current Flow, PV Surge, Overload, Inverter Over Temprature & Load Short Circuit Protections |
|
Intelligent Sharing of PV Current & Grid |
State of the Art Inbuilt Technology ensures four Leval of Solar Saving Setting SL1, SL2, SL3 & SL4 Selectable From Front Panel Meeting Requirement of all Type of Users. |
|
Clearance on All Side for Installation |
Recommended 1 Feet |
|
DC Input Volt. High Cut Protection/Recover |
Available |
|
Most Advanced Real Time Clock Technology |
RTC ensures Optimum Saving Of Solar Energy |
|
Operating Temperature / Realative Humidity |
0~45°C / 5%-95% Non Condensable |
|
Weight (Kgs.) |
Net: 76.200 / Gross: 81.250 KG |
|
Dimension (LxWxH) in MM |
484x277x775 |
